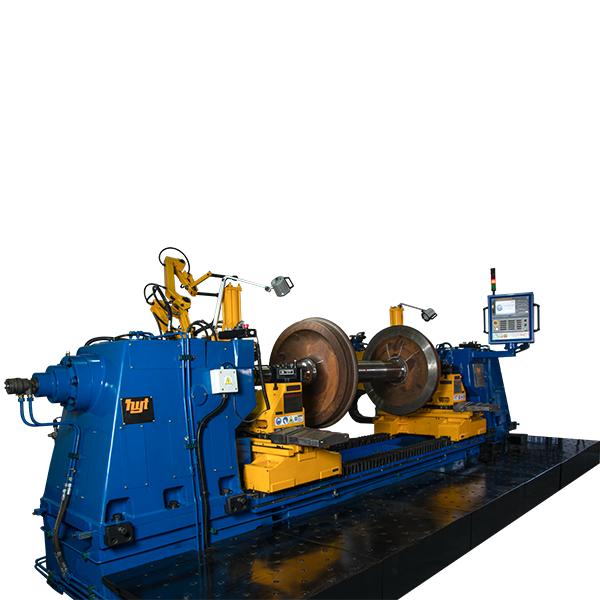

CNC Axle Journal Turning & Burnishing Lathe
YTB – 04
Technical Data of Machine
table, thead, tbody{border: hidden;border-collapse: collapse; font-size:12px !important;}
th{border: 0;}td{border-bottom: 1px solid black;border-right: hidden;}tr{border: 0;border-right: hidden;}tr:nth-child(even) {background-color: #f2f2f2;}
| Main Drive Motor Capacity | 11 KW |
| Cutting Speed for Axle Turning & Burnishing | 50 to 400 m/mins. |
| Tool Post Feed for Axle Turning & Burnishing | 0.1 to 2.5 mm/rev |
| Max. depth of cut while axle turning | 2 mm. |
Wheel Set Data for Machining
| Max. Tread Diameter | 1250mm* |
| Min. Tread Diameter | 540mm* |
| Wheel Width | 75 to 145mm |
| Max. Axle Length | 2750mm* |
| Min. Axle Length | 1200mm* |
| Max. weight of wheel set | 50 kN |
| Min. – Max. Axle Journal diameter | 70-320 mm |
| Min. – Max. Axle Journal length | 110 – 480mm |
Accuracies of Wheel Set
| Ovality of journal | <0.01mm |
| Taper of journal | <0.01/100mm |
| Surface finish of journal after burnishing | <0.2 µm Ra |
Pl. note that improvements is a continuous process. Hence, details explained above may undergo some changes meeting functional, quality and productivity requirements of the required technical specification.
Why you choose us for your next project!
- Turning of in board and out board journals of axles of wheel sets
- Roller Burnishing of in board and out board journals of axles of wheel sets
- Rigid bed with two fixed tailstocks gives maximum rigidity
- One of the tailstocks is equipped with spring pre-loading arrangement to compensate for increase in axle length during burnishing
